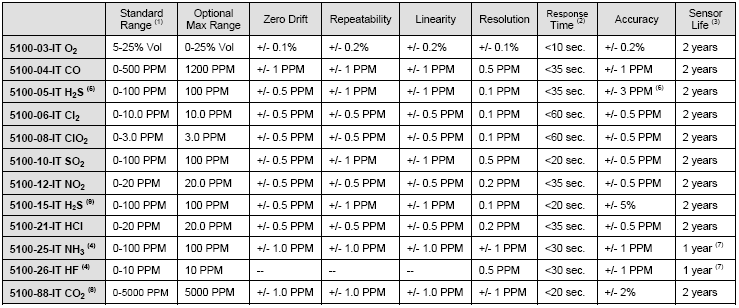

技术参数：
传感器类型： 电化学
备注（1）缺省测量范围
（2）响应时间为通入浓度的90% 全信号值
（3）传感器寿命是指在标准温度和压力下偶尔暴露于目标气体中的使用。
（4）通过膜扩散。需要电解液
（5）较大范围，零漂移，线性，分辨率，和传感器的寿命，还没有得到验证的FM批准。
（6）或+/- 10%的读数，以较大的为准
（7）只更换电解液
（8）红外
（9）半导体
输出：
显示：固定与滚动ＬＥＤ
继电器（可选）：8 Amp，高警报，低警报，2 Amp故障所有SPDT
模拟输出（可选）：模拟4-20 mA(故障 0mA，校准1.5 mA)
信号输出：Sentry bus
序列RS-485 Modbus RTU
输入：
远程警报重设：通常为开放式数字输入（监管式或非监管式）
电力数据：
能耗：2watts
连接类型：3线
输入电压：24 VDC 通常：10-30 VDC

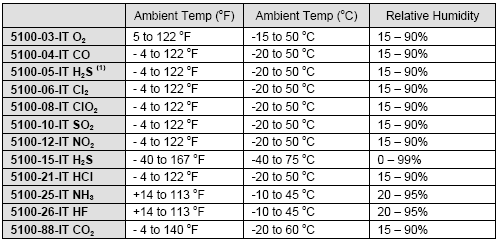

操作条件：
外壳：
材质 – 标准： 聚酯粉涂层，沙铸，无铜铝
材质 – 不锈钢：316不锈钢（FM认证中）
面积：(A1 & A2) 7.9 x 5.7 x 3.9 in. (20.1 x 14.5 x 9.9 cm)
(S1 & S2) 7.6 x 4.4 x 4.9 in. (19.3 x 11.2 x 12.4 cm)
重量：(A1 & A2) 3.4 lb. (1.5 Kg)
(S1 & S2) 7.2 lb. (3.3 Kg)
外壳：NEMA 4X，NEMA 7
防爆级别：Class 1, Div.1, Group B,C,D Class 1,Zone 1,group IIB+H2 IP66
证书：
Factory Mutual (FM): Class 1, Div. I, Groups B, C, D(FM Standards 3600, 3615, 3810)
UL: UL Standard 508A

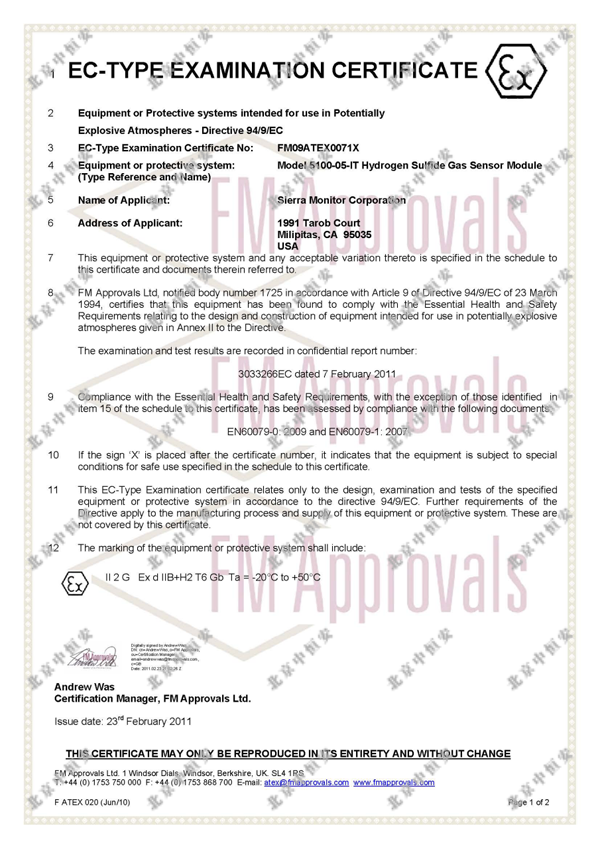

ATEX (5100-XX-IT): II 2 G Ex d IIB+H2 T6 Gb Ta = -20oC to +50oC
FM Performance Approval (5100-05-IT) (Appendix I)

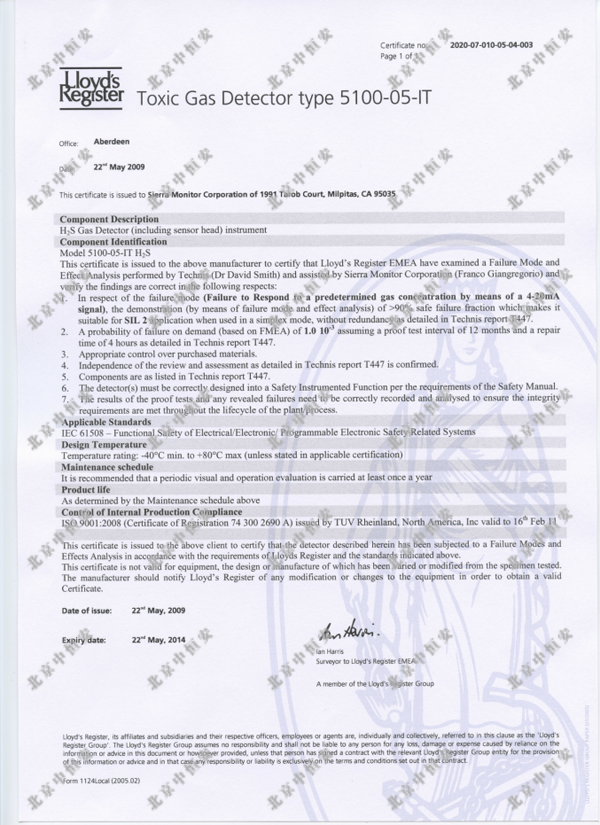

SIL-2 Certified (5100-04-IT, 5100-05-IT, 5100-06-IT, 5100-15-IT)
CE Mark (5100-05-IT)
ABS (5100-05-IT)

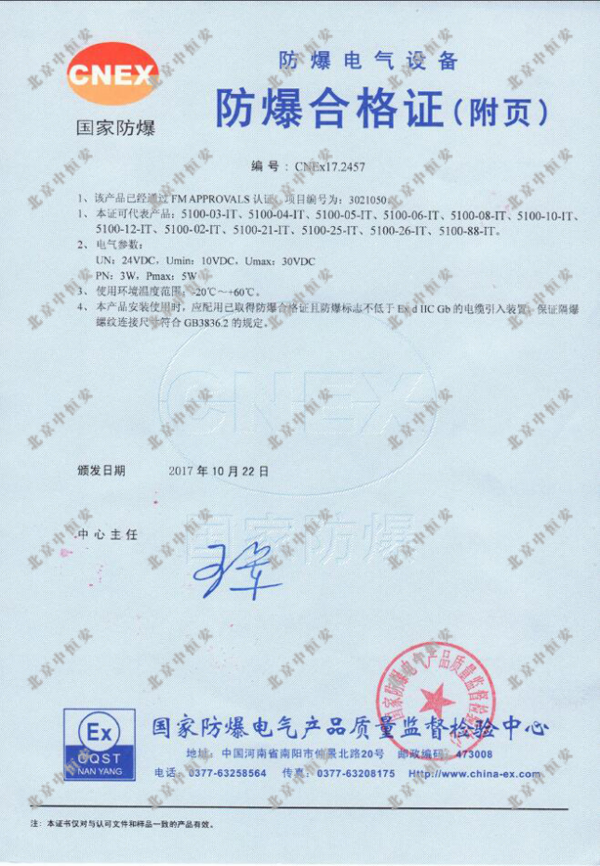

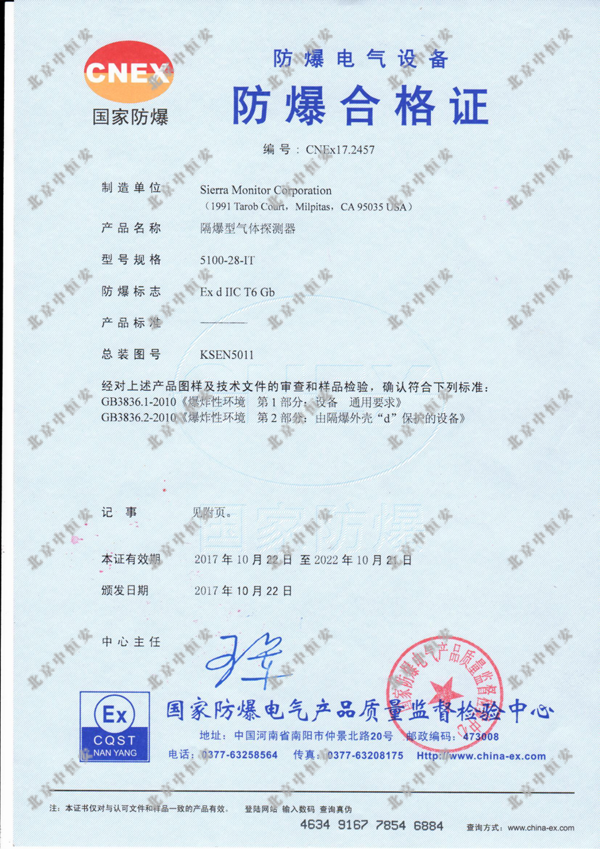

CQST
保修期：有限保修期2年
Sensor Module Relay/Connection Sensor Remote
Model Gas Enclosure Output Protection Option ATEX
5100 - XX - IT - XX - XX - XX - X - X - X
5100 Series - 03 = O2 - IT Series - A1 = AL ?” NPT - 01 = No Relays (std) - 00 = Std - 0 = Standard - 0 = None - 0 = Standard
- 04 = CO - A2 = AL M20 x 1.5 - 02 = Relays Option - 1 = Conformal - 1 = Remote - C = ATEX/IECEx
- 05 = H2S - S1 = SS ?” NPT - 05 = HART Option Sensor Sensor (5100-05 only)
- 06 = Cl2 - S2 = SS M20 x 1.5
- 08 = ClO2
- 10 = SO2
- 12 = NO2
- 15 = H2S
- 21 = HCl
- 25 = NH3
- 26 = HF
- 88 = CO2
Options 5311-00 Rainshield
5311-02 Rainshield with calibration port
Calibration Items 1250-01 Gas Sensor Calibration Kit, Type A (CO, H2S, Air)
1250-02 Gas Sensor Calibration Kit, Type B (SO2, NO2)
1250-03 Gas Sensor Calibration Kit, Type C (Cl2)
1260-00 Gas Cylinder, Air, (Type A), 105 liters
1260-04 Gas Cylinder, CO 100 PPM, (Type A) 57 liters
1260-05 Gas Cylinder, H2S in N2, 25 PPM, (Type A) 57 liters
1260-06 Gas Cylinder, Cl2, 5 PPM, (Type C) 104 liters
1260-10 Gas Cylinder, SO2, 50 PPM, (Type B) 74 liters
1260-12 Gas Cylinder, NO2, 10 PPM, (Type B) 74 liters
1260-13 Gas Cylinder, CO, 1000 PPM, (Type A), 105 liters
5360-00 Calibrator Head Standard
1256-01 Regulator Type A Calibrator
1256-02 Regulator Type B Calibrator
1265-03 Regulator Type C Calibrator
5358-01 Calibration Adapter - Direct, Standard
5358-51 Calibration/Configuration Magnetic Tool, 4501-XX
9210-00 Calibrator, Permeation Tube
9211-09 Permeation Tube, Ammonia, NH3
SPX27057 Kit, Sensor Recharge, for 5100-25-IT
SPX27061 Kit, Sensor Recharge, for 5100-26-IT
See Appendix D for 5100-25-IT and 5100-26-IT
Spare Parts 5200-03-IT Sensor, for 5100-03-IT
5200-04-IT Sensor, for 5100-04-IT
5200-05-IT Sensor, for 5100-05-IT
5200-06-IT Sensor, for 5100-06-IT / 5100-08-IT
5200-10-IT Sensor, for 5100-10-IT
5200-12-IT Sensor, for 5100-12-IT
5200-21-IT Sensor, for 5100-21-IT
SPL21834 Sensor Assembly, Aluminum, for 5100-03-IT - Oxygen
SPL21832 Sensor Assembly, Aluminum, for 5100-04-IT - CO
SPL21830 Sensor Assembly, Aluminum, for 5100-05-IT - H2S
SPL21833 Sensor Assembly, Aluminum, for 5100-06-IT / 5100-08-IT - Cl2 & ClO2
SPL21844 Sensor Assembly, Aluminum, for 5100-10-IT - SO2
SPL21845 Sensor Assembly, Aluminum, for 5100-12-IT – NO2
SPM21878 Sensor Assembly, Plastic, for 5100-26-IT
SPM27082 Sensor Assembly, 316SS, for 5100-03-IT - Oxygen
SPM27083 Sensor Assembly, 316SS, for 5100-04-IT - CO
SPM27074 Sensor Assembly, 316SS, for 5100-05-IT - H2S
SPM27084 Sensor Assembly, 316SS, for 5100-06-IT / 5100-08-IT - Cl2 & ClO2
SPM27087 Sensor Assembly, 316SS, for 5100-10-IT - SO2
SPM27088 Sensor Assembly, 316SS, for 5100-12-IT - NO2
SPL21824 Transmitter
SPL21810 Enclosure, Transmitter, Aluminum
SPL21823 Enclosure Transmitter, 316SS
SPL21825 Interface Board without Relay
SPL21829 Interface Board with Relay
